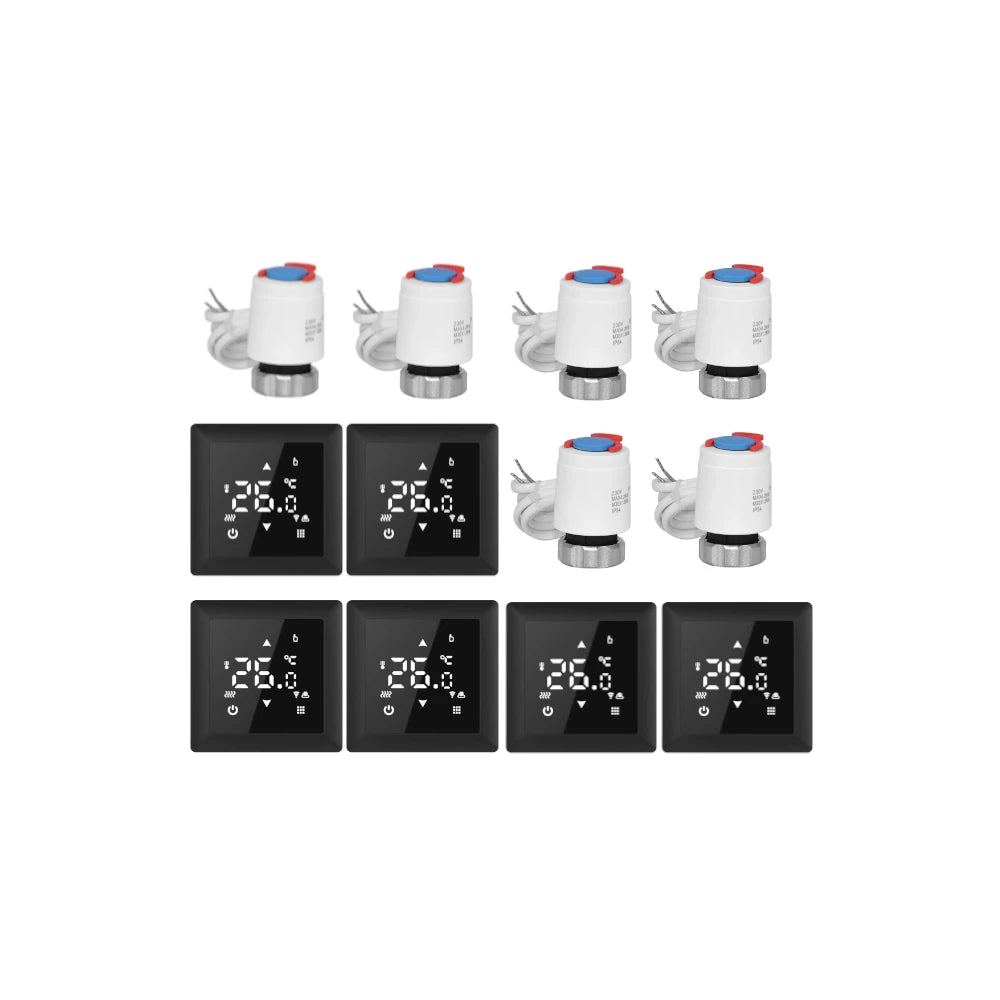

SIRO Smart Underfloor Heating Set for 6 Rooms, Black

Complete 6-room smart home heating package

This smart room thermostat set combines 6 powerful 230 V NC heating actuators with 6 modern SIRO room thermostats. Ideal for single-family homes or large apartments with up to 12 heating zones. The integrated relay output of the room thermostats allows direct control of the actuators – simply wire them up and start heating.

Precise temperature control for every room.

Each Siro room thermostat measures the temperature precisely and sends precise target values to the heating actuators. This ensures that you always achieve the desired comfort temperature in every room and save on heating costs thanks to precise control.

Reliable actuator for valve control

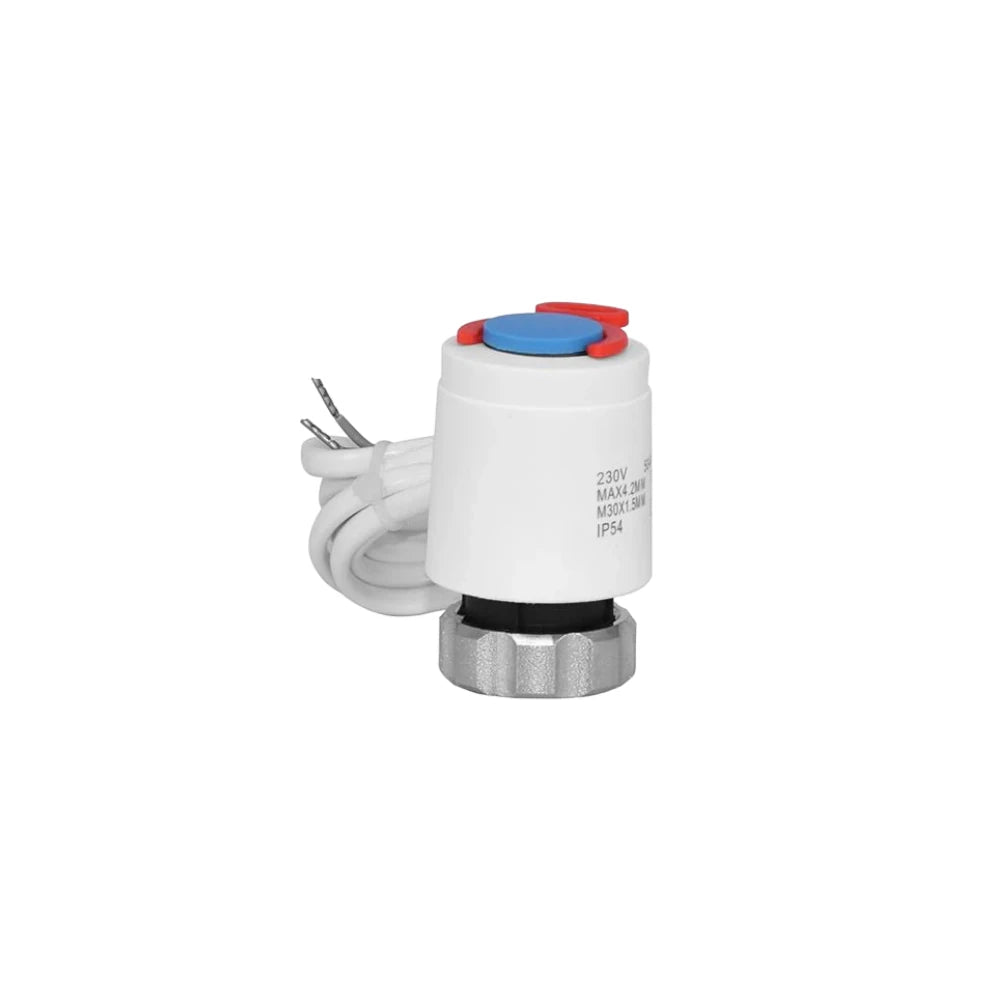

The compact 230 V NC mini-actuators with wax-PTC element offer a 4.5 mm stroke, 110 N pull force and integrated position indication. The spring return in case of power failure and IP54 protection guarantee safety and longevity for your underfloor heating.

Easy Installation & Smart Life App

Thanks to a direct Wi-Fi connection (2.4 GHz) without a gateway, the thermostats integrate effortlessly into your Smart Life app. Create schedules, set up scenes, and control your smart heating via smartphone or voice command through Alexa and Google Assistant.

More comfort & energy efficiency

Automated processes, individually programmable heating profiles and real-time notifications optimize your energy consumption and increase your living comfort. With this 6-room heating management package, you can reduce heating costs and enjoy a smart, connected home.

Our WEEE registration number is: WEEE-Reg.-Nr. DE59943004

* No guarantee given

Scope of delivery

• 6x Room thermostat black
• 6x 230V NC actuators

Technical details

• Power: 90-240Vac 50/60Hz
• Temperature display range: 1°C to 70°C
• Temperature setting range: 5°C to 35°C
• Limit temperature range: 1°C to 70°C
• Display accuracy: 0.5 °C
• Contact capacity: 3A
• Output: Switching relay
• Insulating condition: Normal environment
• Running program: Set as 1-week cycle
• Installation: Flush-mounted type (in the wall)
• Size: 55 * 55 mm (without frame)
