Room Thermostat Surface-Mounted

WLAN Wall Thermostat for Smart Heating Control

The surface-mounted WLAN wall thermostat enables comfortable and precise room temperature control for your home. It is ideal for water-based underfloor heating systems as well as gas combination boilers and ensures efficient control of your heating directly in the room.

Versatile Control for Underfloor Heating and Gas Boiler

230 V actuators can be reliably controlled via the relay output. In addition, the thermostat has a potential-free contact, also known as a dry contact, for controlling compatible gas combination boilers. This makes the device flexible for use in various heating systems.

Intelligent Temperature Control with Heating and Cooling Function

The smart room thermostat supports both heating and cooling functions. This allows you to precisely set the desired room temperature and regulate the indoor climate as needed. Precise temperature control helps to use energy more efficiently and increase living comfort.

Direct WLAN without Additional Gateway

The WLAN thermostat connects directly to your 2.4 GHz WLAN network. An additional gateway is not required. Using the Smart Life app, you can conveniently operate the wall thermostat via smartphone, adjust temperatures, and view the current status at any time.

Modern Design with App Schedule Control

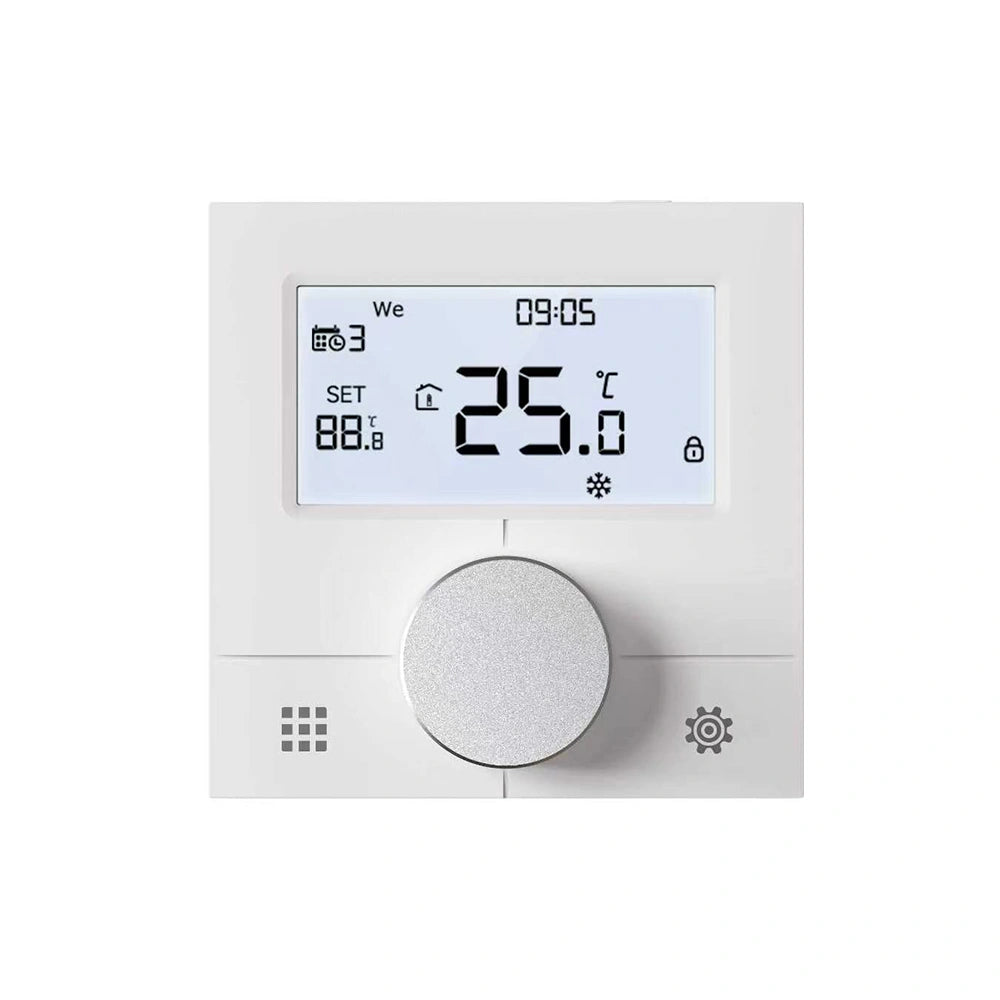

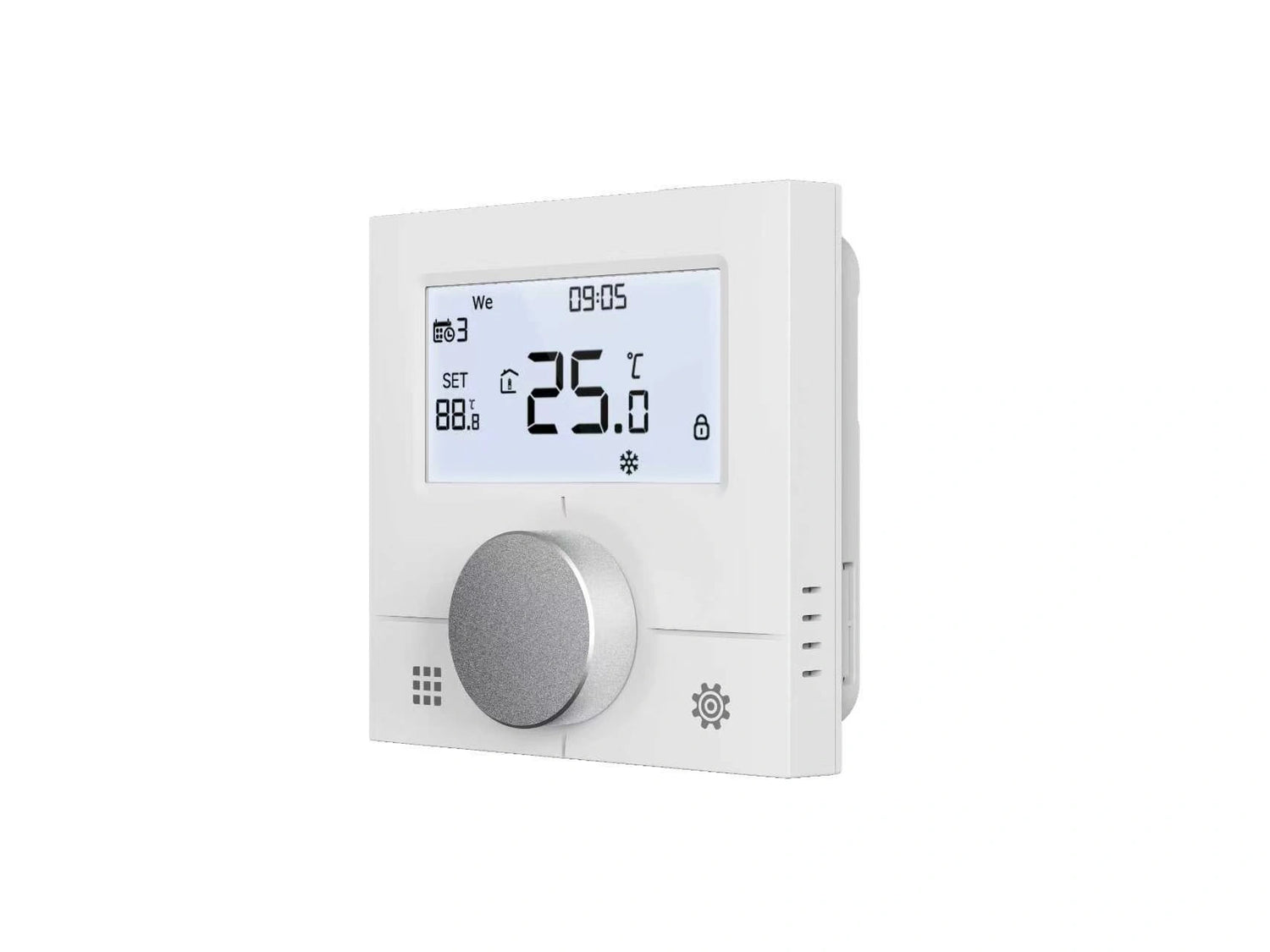

The surface-mounted thermostat features a modern design with a rotary control and a clear LCD display. In the Smart Life app, individual time schedules and smart scenes can be created, for example, for automatic heating times in the morning, during the day, or at night.

Our WEEE registration number is: WEEE-Reg.-Nr. DE59943004

* Information without guarantee

Technical Data

• Power supply: 90–240 V AC, 50/60 Hz
• Sensor probe: NTC (10 kΩ) ±1%
• Switching power: 3 A
• Temperature display range: 1–70 °C
• Standard temperature setting range: 5–35 °C
• Temperature control accuracy: ±0.5 °C
• Dimensions: 86 × 86 × 26 mm (without rotary control)
• Frequency: 2.4GHz WLAN

Scope of delivery

• 1x WLAN surface-mounted room thermostat

User Manual
